Strategy node to postpone power consumption until the price is lower.

Description

This strategy turns off the hours where the price difference is largest compared to the next hour that is on. The idea is that the power you are not using when the switch is turned off, will be used immediately when the switch is turned on (during the first hour). This would fit well for turning off a water heater or another thermostat controlled heater.

70°C

Be aware that the norwegian FHIopen in new window recommends that the temperature in the water heater is at least 70°C.

The picture at the bottom of the page, under Integration with MagicMirror, illustrates this by the purple strokes, taking the price from the top of the price curve to the level of the first hour after the save-period.

Configuration

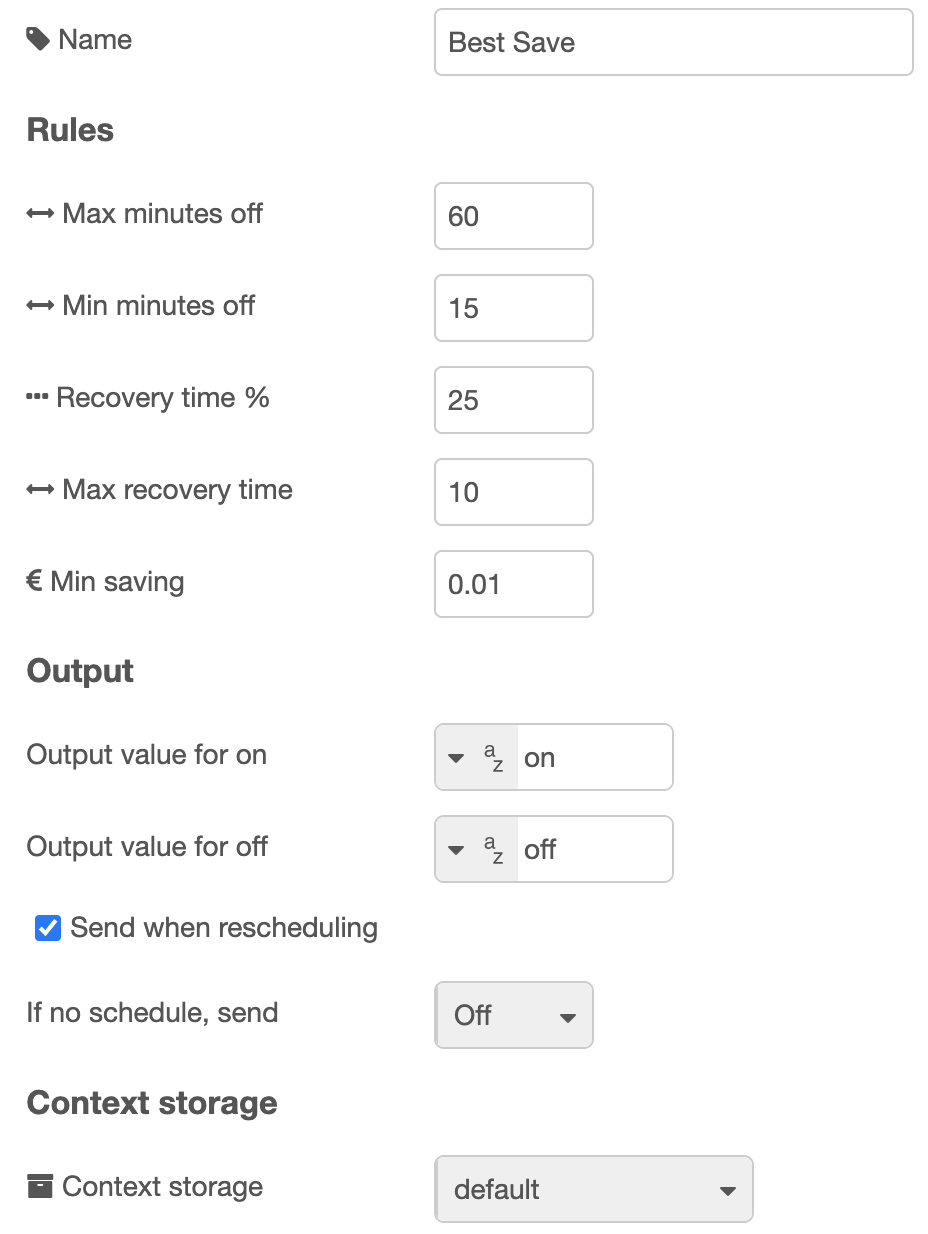

Best Save Config

Value
Max per sequenceMaximum number of hours to turn off in a sequence
Min recoverMinimum hours to turn on immediately after a period when turned off the maximum number of hours that is allowed to be turned off
Min savingMinimum amount to save per kWh in order to bother turning it off. It is recommended to have some amount here, e.g. 2 cents / 2 øre. No point in saving 0.001, is it?
Output value for onSet what value to output on output 1 in order to turn on. Default is boolean true. You can also select a number, for example 1, or a string, for example on, or any other value.
Output value for offSet what value to output on output 2 in order to turn off. Default is boolean false. You can also select a number, for example 0, or a string, for example off, or any other value.
Send when reschedulingCheck this to make sure on or off output is sent immediately after rescheduling. If unchecked, the output is sent only if it has not been sent before, or is different from the current value.
If no schedule, sendWhat to do if there is no valid schedule any more (turn on or off). This value will be sent also before there is any valid schedule, or after the last hour there is price data for.
Context storageSelect context storage to save data to, if more than one is configured in the Node-RED settings.js file.

Min recover

NB! The Min recover only has effect if the previous save-period is of length Max per sequence. If the save-period is shorter, the following on-period may be as short as one hour.

Dynamic config

The following config values can be changed dynamically:

NameDescription
contextStorageString
maxHoursToSaveInSequenceNumber
minHoursOnAfterMaxSequenceSavedNumber
minSavingNumber
outputIfNoScheduleLegal values: true, false
sendCurrentValueWhenReschedulingLegal values: true, false
outputValueForOnSee description in Dynamic Config
outputValueForOffSee description in Dynamic Config
outputValueForOntypeSee description in Dynamic Config
outputValueForOfftypeSee description in Dynamic Config
overrideLegal values: "on", "off", "auto"

See Dynamic Config for details and how to send dynamic config.

Dynamic commands

You can send dynamic commands to this node, for example to make it resend output. See Dynamic Commands for details and how to send dynamic commands.

Input

The input is the common strategy input format.

In addition to the prices sent as input, the node is using the schedule for the day before it receives data for, so that it can calculate the schedule in the beginning of the day according to the configured rules. This requires of course that the node was run the day before.

When a payload with priceData is received, this is saved to the nodes context as lastPriceData. The source is saved as lastSource. If config- or command-messages are received without price data, the data saved in context is used for replanning.

Output

There are three outputs. You use only those you need for your purpose.

Output 1

A payload with the value set in config, default true, is sent to output 1 whenever the power / switch shall be turned on.

Output 2

A payload with the value set in config, default false is sent to output 2 whenever the power / switch shall be turned off.

Output 3

When a valid input is received, and the schedule is recalculated, the resulting schedule, as well as some other information, is sent to output 3. You can use this to see the plan and verify that it meets your expectations. You can also use it to display the schedule in any way you like.

Example of output:

{
  "schedule": [
    {
      "time": "2021-09-30T00:00:00.000+02:00",
      "value": false,
      "countHours": 1
    },
    {
      "time": "2021-09-30T01:00:00.000+02:00",
      "value": true,
      "countHours": 23
    },
    {
      "time": "2021-09-31T00:00:00.000+02:00",
      "value": false,
      "countHours": null
    }
  ],
  "hours": [
    {
      "price": 1.2584,
      "onOff": false,
      "start": "2021-09-30T00:00:00.000+02:00",
      "saving": 0.2034
    },
    {
      "price": 1.055,
      "onOff": true,
      "start": "2021-09-30T01:00:00.000+02:00",
      "saving": null
    },
    {
      "price": 1.2054,
      "onOff": true,
      "start": "2021-09-30T02:00:00.000+02:00",
      "saving": null
    } // ...
  ],
  "source": "Nord Pool",
  "config": {
    "contextStorage": "default",
    "hasChanged": false,
    "maxHoursToSaveInSequence": 3,
    "minHoursOnAfterMaxSequenceSaved": "1",
    "minSaving": 0.001,
    "sendCurrentValueWhenRescheduling": true,
    "outputIfNoSchedule": false
  },
  "time": "2021-09-30T23:45:12.123+02:00",
  "version": "3.1.2"
}

The schedule array shows every time the switch is turned on or off. The hours array shows values per hour containing the price (received as input), whether that hour is on or off, the start time of the hour and the amount per kWh that is saved on hours that are turned off, compared to the next hour that is on.

Output saved in context

The schedule and the hours arrays from Output 3 are both saved to the nodes context in an object with key lastPlan. This may be used in the plan for the next day, for example if an off-period at the end of one day continues into the next day. In that case, the saving values for the last hours in the day have to be recalculated, since the next hour on is changed when the new day is calculated.

You can see the saved data if you select the node in Node-RED, and view "Context data", and refresh the Node context.

Algorithm

The calculation that decides what hours to turn off works as follows:

  1. A matrix (x * y) is created where x is the number of hours we have price information for, and y is the configured maximum number of hours to turn off in a sequence.
  2. The matrix is filled with how much you save by turning off hour x for y hours.
  3. The matrix is processed calculating all possibilities for turning off a number of hours in a sequence and by that saving money. In this process all non-saving sequences are discarded. Also, if the average saving per hour is less than what you have configured as minimum amount to save per kWh, the sequence is discarded.
  4. The remaining sequences are sorted by how much that is saved, in descending order.
  5. Next, a table with one value per hour is created, with all hours in state "on".
  6. Then the saving sequences is applied one by one, turning off the hours in each sequence, discarding sequences that lead to any violation of the rules set by the config.
  7. When all sequences are processed, the resulting table shows a pretty good savings plan, that in most cases would be the optimal plan.

I say "in most cases", because there is a chance that a group of two or more sequences combined can give a better plan than a single sequence preceeding those two, but where the selection of the one sequence causes the group to be discarded. If anyone encounters this situation, I would be happy to receive the price data set, and try to improve the algorithm even further.

Data used for calculation

Normally data is received for one or two whole days, and all this data is used to do the calculation. In addition, if the node has run before, so there is historical data, the last period on or off before the period data is received for, is considered in the calculation, so that the rules in the configuration are followed also between days.

Restarts and saved context

The config, last received prices and the last calculated schedule are saved to the nodes context. This may be saved to memory, to file or to another destination based on how your Node-RED is configured. If multiple context storages are defined, you can select which one to use in the nodes config. If there is only one context storage defined, this is normally memory. In that case, data is not saved over restarts. It is common to have two different context storages defined, memory and file, but there may be more. It is also common to have a default context storage defined, and often this points to either memory or file. However, the configuration can be different from this.

You can find this configuration in the settings.js file for Node-RED, usually in the node-red config folder. In Home Assistant, this is normally /config/node-red/settings.js.

Here is an example of a configuration for the context storage:

contextStorage: {
  file: { module: "localfilesystem"},
  default: { module: "memory" }
}

By default, this node saves context to the default context storage. In the example above, this is memory. Then it is not preserved over a restart. Please read the Node-RED documentationopen in new window for more details about this.

The data that is saved is the config, the last used prices and the last calculated schedule.

When Node-RED restarts, the config is reset to what is defined in the node config, so by default, nothing is read from the context storage after a restart. However, if you send a replan command to the nodes input, a plan is recalculated, using the last received prices. One way to do this is to use an inject node, and set msg.payload to the following JSON value:

{
  "commands": {
    "replan": true
  }
}

This is an alternative to fetching new prices and send as input.

Integration with MagicMirror

Are you using MagicMirroropen in new window? Are you also using Tibberopen in new window? If so, there is a module for MM called MMM-Tibberopen in new window, that easily can be used to show savings from this node.

Show savings in MMM-Tibber

The purple lines show savings per kWh.

Read more about this in the MMM-Tibber documentationopen in new window.

Viewer

If you like to analyze the data output by the node, take a look at the Best Save Viewer.
